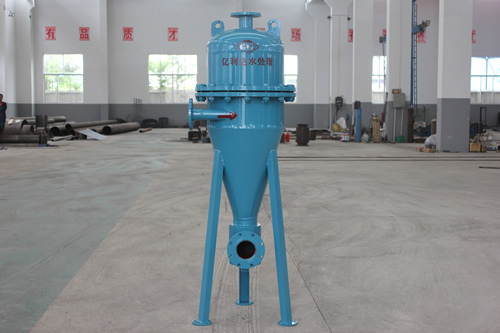

| Efficient centrifugal desander | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scope of Application
1. Mainly applied to the raw water, water treatment and water quality control, such as: water, well water Sand, coal washing water, industrial minerals, solid-liquid separation, liquid gas and non-miscible liquids in addition to the separation,ect.
2. Can be widely used in water source heat pump system, water heating, central air-conditioning cooling water, chilled water, steel, power generation, chemical and other industrial and mining enterprises, water, sea water, surface water, groundwater, etc.
Technical Feature
Material：carbon steel Raw water ≥ 300°
Head loss：2mm Effluent turbidty ≤10° Inflow pressure≥0.2～0.25Mpa Degritting Diameter＞ 0.1mm YLXC type swirl Desander is based on centrifugal sedimentation and density difference of principle, when the water flow at a certain pressure to cut imports from Desander to enter the device, resulting in a strong rotation, as sand and water density, the centrifugal force, centripetal buoyancy, fluid drag force due to the effect of different low density so that rising water from the overflow discharge port density of the sand from the bottom row of sand from the mouth, so as to achieve the purpose of sand. And conditions in a certain range, the greater the water pressure desander, Sand the higher rate, and can use multiple parallel.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
