◆ YLD system soft water

YLD company in China ten years ago since the first introduction of automatic water softener has been focused on the development and promotion of water softening equipment in line with China's national conditions. By the JK type, JM type, FLECK-and JB-type softener composed of YLD Series water softener, and the gathering, director of the public at home and abroad, for the different applications their users with the most reasonable and practical series of soft water equipment.

◆ Lectotype prompt

YLD system soft water	Control model	flow scope(t/h)	particular characteristic	application objects
JB type	semi-automatic control value	0.3-2.0	Manual start, automatic regeneration, no power	Small civilian and commercial systems, automation ask for much, the pursuit of small systems economical
JK type	full-automatic multitandem valve	0.3-20	Hydraulic drive, no power	Less than 20t / h of small systems, automatic running, unattended, simple control
FLECK type	full-automatic control value	0.5-50	Fully automatic operation, configuration flexibility	Less than 50t / h softening system, fully automatic operation, simple control
JM type	Controllers have conducted several valves	8-400	Fully automatic operation, configuration flexibility Adjustable range, high accuracy	In large industrial soft water system, operating conditions requires a more complex system

◆Single tank Specification

Part number	Recommend produce a water yield（M³/H）	tank size D ×H（mm）	salt box（L）	resin amount（KG）	External diameter（mm）
YL-I-0.5	0.5	200×900	25	20	DN20
YL-I-1	1	250×1400	60	25	DN20
YL-I-2	2	300×1400	100	50	DN20
YL-I-3	3	350×1650	100	75	DN25
YL-I-4	4	400×1650	200	120	DN25
YL-I-5	5	500×1750	300	200	DN40
YL-I-6	6	600×1850	350	240	DN40
YL-I-10	10	750×1850	500	380	DN40
YL-I-15	15	900×1900	800	520	DN50
YL-I-18	18	900×2200	800	600	DN50
YL-I-25	25	1000×2200	1000	720	DN50
YL-I-30	30	1200×2400	1500	1000	DN80
YL-I-50	50	1500×2500	2000	1600	DN80

◆ YLDSingle tank water softener water softening system configuration

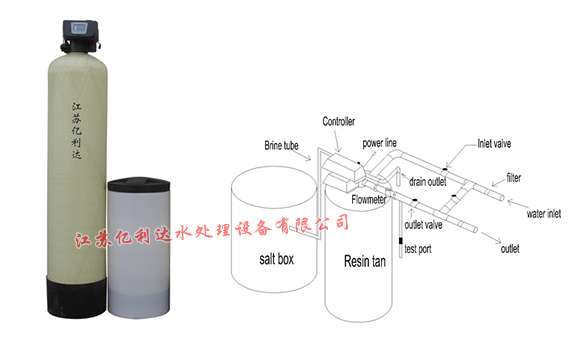

Installation diagram of a single tank (available for reference)

◆ Cans were recycled two-run type

Part number	Recommend produce a water yield（M³/H）	tank size D ×H（mm）	salt box（L）	resin amount（KG）	External diameter（mm）
YL-II-2	2	300×1400	100	100	DN20
YL-II-3	3	350×1650	100	150	DN25
YL-II-4	4	400×1650	200	240	DN25
YL-II-5	5	500×1750	300	400	DN40
YL-II-6	6	600×1850	350	480	DN40
YL-II-10	10	750×1850	500	760	DN40
YL-II-15	15	900×1850	800	1040	DN50
YL-II-18	18	900×2200	800	1200	DN50
YL-II-25	25	1000×2200	1000	1440	DN50
YL-II-30	30	1200×2400	1500	2000	DN80
YL-II-50	50	1500×2500	2000	3200	DN80

◆ YLD softener dual tank demineralized water system configuration

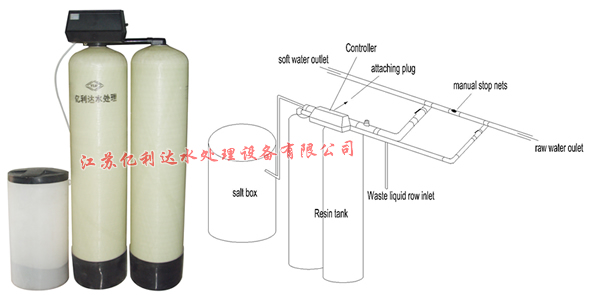

Dual tank with a preparatino for installation(available for reference)

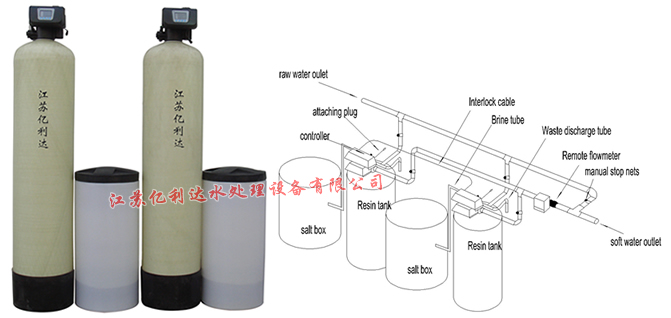

Dual tank to run installation (for reference)
