◆ Summary
U.S. Kangke Kinetico water control valve since its inception in the mid-1970s, with its unique non-hydraulic automatic control function of the real power to achieve a water softener "fool automated" dream, is now sold all over the world, more than 70 countries and regions. According to China's national conditions, the use of soft water valve control Kangke hydraulic drive system, developed and designed for China's civil and industrial water softening equipment, water supply JK-type non-automatic water softener. Years of practice have proved that the pursuit of automatic water softener is simple, practical, economical, reliable, on the JK-type water softener has been fully reflected, and by the water softener customers widely welcomed.
◆ Scope of Application
Widely used in various industrial and commercial water softening equipment, such as boiler water, heating and air conditioning systems to add water, textile printing and dyeing, paper making, laundry, bathing, food processing, water and other areas of quality of life. Deal flow from 0.3 to tens of tons per hour.
◆ Features
Do not have the power: to eliminate the electrical system failure, power failure, simplifies installation, in particular, explosion-proof requirements applicable to the fuel gas-fired boiler of soft water;
Management is simple: do not require users to have the expertise, really belong to "fool automatic"; all management is regularly salt;
Continuous water: dual tank system with a prepared, continuous water 24 hours a day;
Flow control: to ensure the running of the economy, and reliable;
Countercurrent Regeneration: Regeneration mode using counter-current technology, and renewable and clean with soft water, to achieve a low consumption of salt, high-quality water;
Maintenance is simple: very low failure rate.
◆Worksm Principle

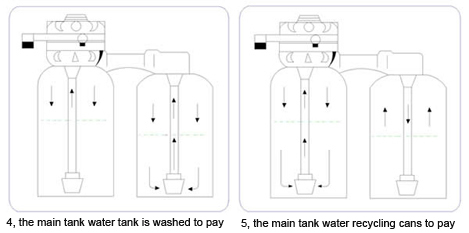

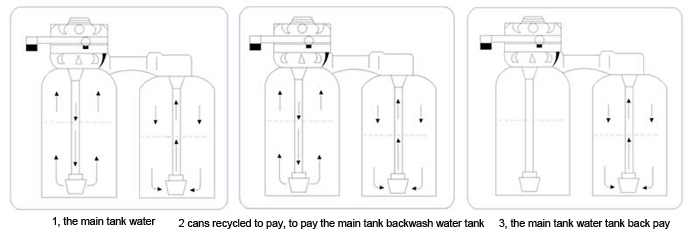

JK-type automatic water softener use of impact kinetic energy generated by the impeller through a gear soft water flow measurement, in order to determine the end run and send the signal regeneration. Valve gear driven rotary control panel to control the distribution of pressure signals, command different opening and closing the valve, in order to achieve water softener brine, backwash, flushing, and the main and sub tank switch. All work processes are driven by the water pressure automatically.
◆ JK-type
| Raw water hardness（mmoI/L） |
9 |
10 |
11 |
12 |
13 |
| JKH0.6 |
5# |
5# |
6# |
6# |
0# |
| JKH1.0 |
5# |
5# |
0# |
0# |
0# |
| JKH3.0 |
5# |
5# |
6# |
6# |
0# |
Note:The quality of raw material with the water dial number is different,different water hardness select dial numbers refer to Table.

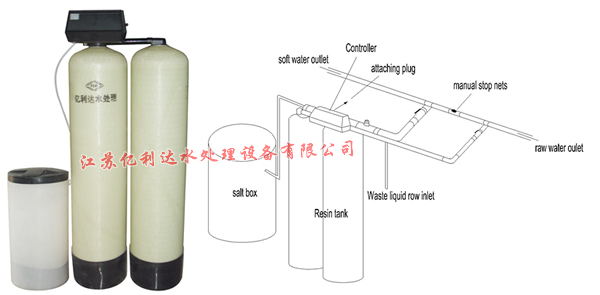

Dual tank with a preparatino for installation(available for reference)
◆ For instructions:
1, water temperature 5-50 ℃
2, water hardness ≤ 0.03mmol / L
3, the processing flow of more than 8 tons / hour user, you can increase the copy number of combinations until the required flow.
4, when the raw water hardness ≥ 8mmol / L when the selection in the JHK series, but the water quality analysis report should be provided to ensure reliable operation of the selected device's economy.
