Home >> Products
 |

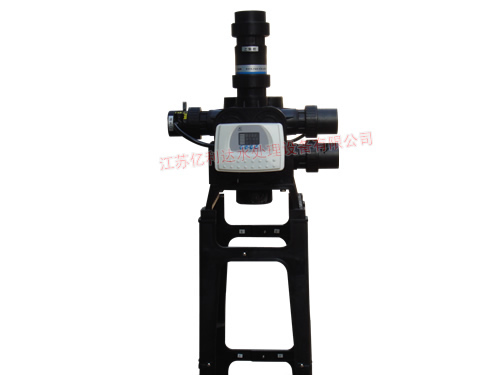

| Softener control valves(40t/h) |
|
Technical parameter
● controller mode ----------------------------------------------- flow type / current regeneration；
●Applicable water pressure----------------------------------0.2—0.6Mpa；
●Power adapter--------------------------------------------------100-240V/50-60Hz；
●Applicable water temperature-----------------------------5--45℃ applicable water temperature；
●Biggest produce a water yield-----------------40 m3/h；
●Adaptation to soften the diameter (in)-------------------36—63″；
●Outlet --------------------------------------------DN65 (with diameter ¢ 75 of UPVC pipe bonding)；
●Drain ---------------------------------------------DN65 (with diameter ¢ 75 of UPVC pipe bonding)，
●Brine interface --------------------------------------- 3 / 4 "M (external thread)；
●Upper and lower water distributor -----DN80 (¢ 90 with the diameter of UPVC pipe bonding)；
Function&Feature
■ Distribution valves open and close using seal means, the main valve piston valve structure with four links, distribution valve and main valve assembly as a whole
■ With a sampling valve port outlet
■Inlet and outlet, outlet bonding UPVC pipes are used, then comes alive
■It can be used to filter system
■ Connection with side-mounted
■ Salt water valve controlled by the electric ball, running at the same time the salt water tank
■ Flow triggering regeneration
■ With the signal output port
■ With interlock
■ With a remote control port | |
|
