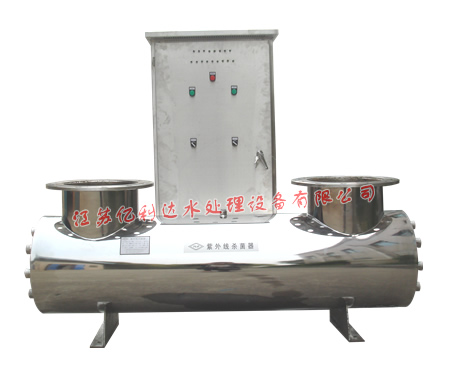

450T/H UV sterilizer_Jiangsu YLD Water Processing Equipment Co.,Ltd.

Working Principle:

The device adpots a special high strength non ozone ultraviolet sterilizing lamp and an inner wall after the special treatment of micro carbon smelly martensitic stainless steel barrel, outer side of the barrel body with a special polishing treatment the pretreated water flowing in the tube when subjected to ultraviolet 253.7nm enough line volume of irradiation, has good sterilizing effect, but also effectively reduces the influence of ultra pure water。

Feature

•304 or 316 polished stainless steel reactor
•Quartz sleeve ensure the best working temperature
•Comprehensive,rapid and efficient sterilization, sterilization, the highest rate is 99.9%, higher output, physical sterilization, No side effects, n no secondary pollution
•All stainless steel shell, the European technology, smooth inner wall. Not Blind Angle.
•Clean equipment,electroplating polishing,applicable to high purifying environment
•The electrical device is configured to the world market
•Special design, more convenient

Uv sterilizer application scope

•Food processing industrial water disinfection, including juice, milk, beverage, beer, edible oil, and various kinds of canned products such as cold drink, water disinfection
•Electronic industry use the ultra pure water

•Hospital, all kinds of laboratory water disinfection, and the high content to a causative agent wastewater disinfection
•Application water disinfection, including residents resident buildings, residential, office buildings, hotels, restaurants, tap water factory, etc
•Aquatic product processing purification disinfection, shellfish purification disinfection, fish processing purification disinfection,ect.
•Military camps, the water supply system
•Urban wastewater disinfection, maximum capacity can reach above 1 million tons per day
•Swimming pools, water other entertainment water disinfection
•Cooling water disinfection, including power plant, nuclear power plant cooling water, industrial production cooling water, the central air conditioning system cooling water
•Biological, chemical medicine, cosmetics production with cooling water
•Sea water, fresh water nursery, breeding (fish, eels, shrimp, abalone, shellfish, etc) water, total processing water can reach above 200000 tons per day
•Agricultural water disinfection, including water and irrigation, greenhouse,ect.

Uv sterilizer performance technology parameters

Part number	Disinfection water(T/H)	Power（W）	In-out water (Nominal/inch)	System pressure Kg/cm²	Uv lamp fault alarm system	The reactor size (cm) L x W x H	Control cabinet size(cm)	anchor screw (cm)	shipping weight(Kg)
YLCn-005	0.3	16	1/2"	6	exist	30×6×11			5
YLCn-008	1	25	1/2"	6	exist	47×6.3×11			10
YLCn-050	2	40	1"	6	exist	100×9×20	Φ8.9×25 (C×L)	69×4×Φ1	25
YLCn-150	6	80	1+1/4"	6	exist	100×11×23	Φ8.9×25 (C×L)	69×4×Φ1	30
YLCn-200	8	120	1+1/2"	6	exist	100×15.9×30	Φ8.9×45 (C×L)	69×7×Φ1	35
YLCn-300	12	160	2"	6	exist	100×15.9×32	Φ8.9×45 (C×L)	69×7×Φ1	40
YLC-050	2	40	DN25/1"	6	exist	100×8.9×30	25×30×12 (W×H×T)	60×4×Φ1	45
YLC-150	6	80	DN32/1^1/4^"	6	exist	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/1^1/2^"	6	exist	100×15.9×40		60×7×Φ1	60
YLC-300	12	160	DN50/2"	6	exist	100×15.9×40		60×7×Φ1	70
YLC-360	15	200	DN65/2^1/2"	6	exist	100×15.9×40	50×78×25 (W×H×T)	60×7×Φ1	120
YLC-500	20	240	DN65/2^1/2"	6	exist	100×21.9×50		60×11×Φ1.2	130
YLC-600	25	280	DN80/3"	6	exist	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4"	6	exist	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4"	6	exist	100×21.9×50		60×11×Φ1.2	160
YLC-1200	50	400	DN125/5"	6	exist	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	DN150/6"	6	exist	170×27.3×57		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6"	6	exist	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6"	6	exist	170×27.3×57	60×128×30 (W×H×T)	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6"	6	exist	173×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8"	6	exist	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8"	6	exist	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	DN250/10"	6	exist	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10"	6	exist	176×52.9×95	60×150×40 (W×H×T)	120×28×Φ2.2	475
YLC-15K	600	3080	DN300/12"	6	exist	176×78×110	60×150×40 (W×H×T)	120×32×Φ2.4	600
YLC-20K	800	3920	DN350/14"	6	exist	designated	designated	designated	designated
YLC-25K	1000	4760	DN350/14"	6	exist	designated	designated	designated	designated

NOTE:
1、Equipment power supply 220V / 50HZ, the ultraviolet lamp tube service life≥9000 hours
2、The technical parameter table providing the equipment is suitable for water purification water disinfection, such as: tap water, pure water, aquaculture water, food processing water, high quality water supply, medicine water etc.
3、Bactericidal efficiency depends on the transparency of the water body, impurity and temperature, bactericidal efficiency is 99.9% or special design
4、YLCn model for thread interface, YLC model for flange constructed interface
5、According to the customer need to configure a variety of advanced on-line monitoring instrument and remote control system, such as: UV lamp control system, UV intensity monitoring system, the water temperature detection system, disinfection time accumulation system
6、According to the customer need to manually configure the type cleaning device or automatic cleaning device.
