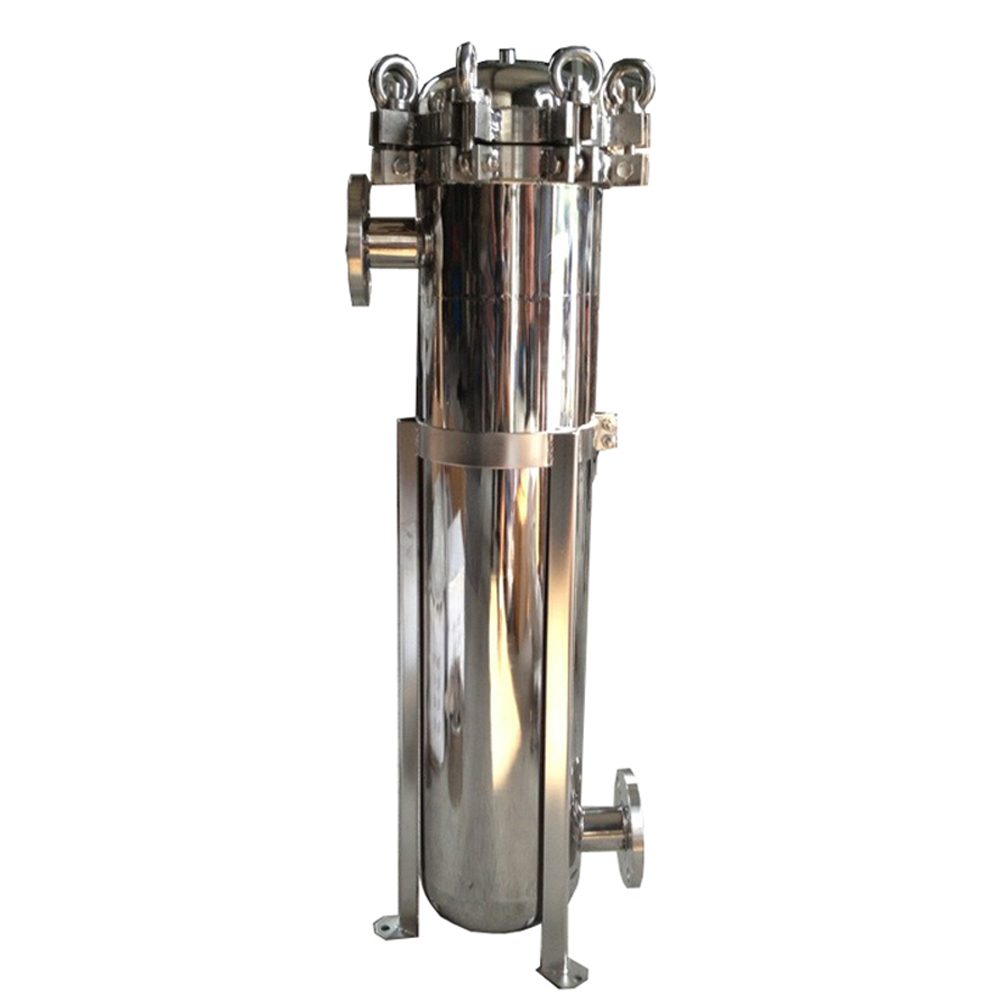

Bag Filter Housing With Single Filter Bag_Jiangsu YLD Water Processing Equipment Co.,Ltd.

Introduction and principle

Bag filter under the pressure, so that the liquid through the filter bag, filter bag retained by the pollutants retained in the filter bag, filter residue in the filter bag, the filtrate along the metal support network basket outflow , So as to achieve the purpose of filtration. Bag filter, suitable for paint, beer, vegetable oil, medicine, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, sugar, Industrial wastewater, fruit juice, edible oil and so on.

Specification:

Model	Flow rate （T/h）	Inlet & outlet dia. (mm)	Dimension	Bag qty.	Bag specification	Filtration area （㎡）
YL-1-219	20	DN50	219*410	1＃ single	180*410	0.23
YL-2-219	40	DN65	219*810	2＃ single	180*810	0.46
YL-2-400	50-80	DN80	400*810	2＃ two	180*810	0.92
YL-2-500	120	DN100	500*810	2＃ three	180*810	1.38
YL-2-550	140	DN100	550*810	2＃ four	180*810	1.8
YL-2-650	160	DN125	650*810	2＃ five	180*810	1.84
YL-2-750	200	DN150	750*810	2＃ six	180*810	2.3
YL-2-800	220	DN150	800*810	2＃ eight	180*810	2.5
YL-2-850	240	DN200	850*810	2＃ nine	180*810	2.76

The above data is for reference only, subject to each shipment product data.

Major advantages

1. Low side leakage probability of the filter bag, ensuring the quality of filtration

2. Bag filter could bear greater pressure but with less pressure loss, obvious energy-saving effect but low running cost

3. The filtration precision of bag filter is continuously improved and now reaches 0.5 pm.

4. The bag filter has large capacity, small size and large amount of pollutant.

5. Based on the working principle and structure of bag filter system, the filter bag can be replaced conveniently and the filter is free for cleaning, saving time and labor.

6. Bag filter is used widely and flexibly and it can be installed in many ways.
