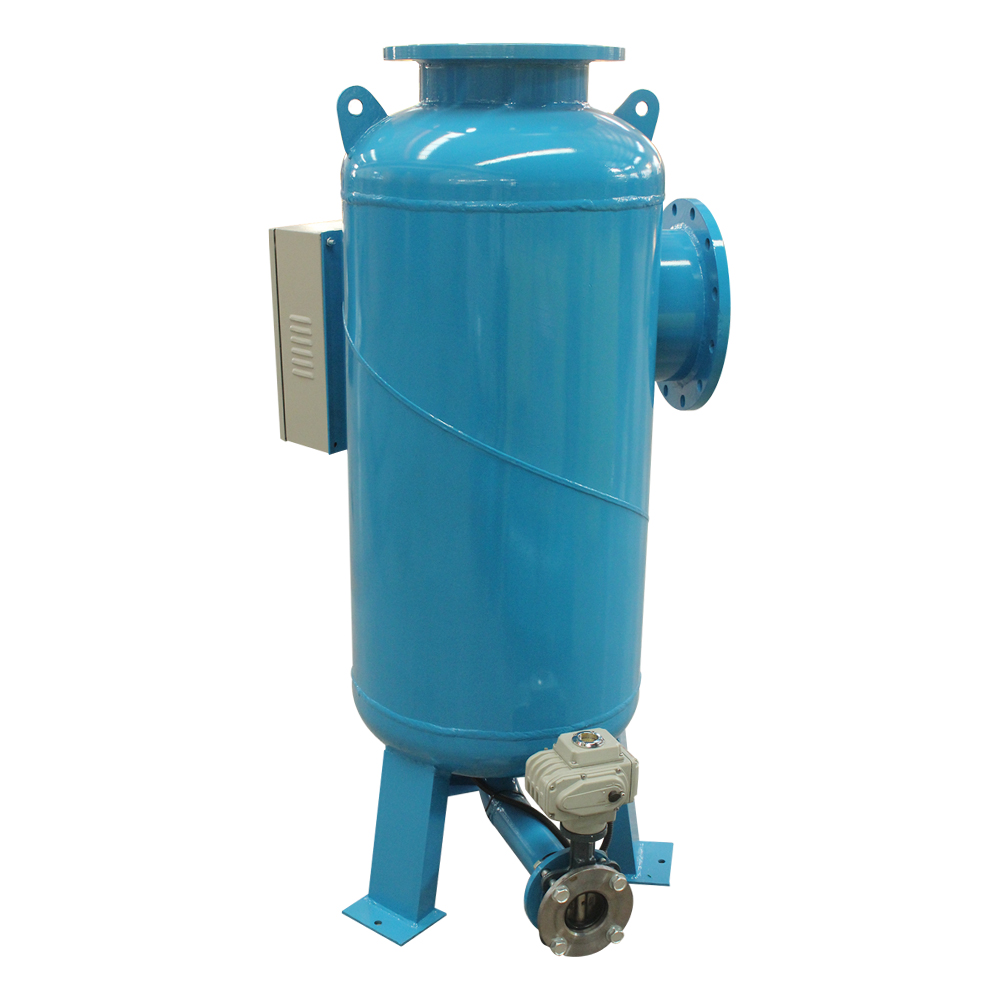

Automatic hYDROCYCLONE Desander_Jiangsu YLD Water Processing Equipment Co.,Ltd.

Introduction

Set of rows of sand swirl of fully automated systems and filter as a whole, is mainly used to clear the ground water and solid particles in the underground hot water and other water sources for water source heat pump system, central air conditioning cooling water, chilled water systems, winter heating and circulating water systems, industrial cooling water system. Widely used in many industrial sectors such as chemicals, environmental protection, food, medicine, to achieve desanding in the field of water treatment, and descending the turbid, and the solid-liquid separation and other effects significant.

Working principle

Automatic row of sand is made of the rotating flow of fluid to solid particles in the desander screening principle. Be a combination of the filtering device new separation devices, when the flow from the the desanding water density in a certain amount of pressure under the joint action of the centrifugal force centripetal force, so that the low density of the water increased, discharged from the outlet, the density of the sand by the device the bottom of the discharge, the individual small particles floating along the water and then filtered by the second level of filtration equipment to achieve the purpose of desanding. Than the desander currently on the market, an increase of the filter unit (filtration precision selected by the user), has desanding rate, saving installation space, the leakage of individual small particles caught low, stable working status, etc.

Technical parameter　　

Material： carbon steel raw material turbidity ≥ 300°

head loss：2mm effluent turbidity≤10°

inflow pressure≥0.2～0.25Mpa degritting diameter ＞ 0.1mm

Input power supply ：380V/50HZ

Applied range　　

For river water well water desanding, coal washing water treatment, industrial washing liquid solid separation, and separation of non-interoperability solution.

Product feature

　　Energy consumption, Desanding effect, especially for the higher sand content of the system uses.
　　Low cost, easy to install and operate, safe and reliable operation, small size, Great capacity, small footprint.
