Air Conditioner Condenser Tube Cleaning Equipment_Jiangsu YLD Water Processing Equipment Co.,Ltd.

Working principle

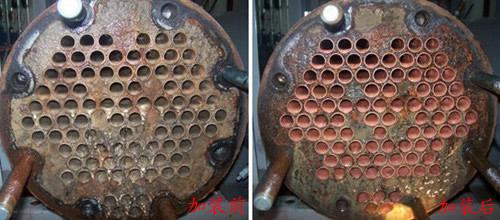

The rubber ball through the serving device sends in the condenser, the rubber ball on the cooling water of high velocity scrub off the dirt on the inner wall of the heat pump condenser copper pipe, the cooling water outlet end through the ball collecting device of recycling rubber ball, the ball collecting tube by driving the ball back to the ball collecting device to form a cleaning cycle. Through the Siemens PLC intelligent control box set cleaning frequency, to achieve the automatic online cleaning function, always keep the wall clean the condenser, heat transfer efficiency is the highest, the water chiller refrigeration efficiency is the highest.

Part of the online cleaning device for condenser:

1. Ball Serving Device

Ball serving device is a rubber ball cleaning system for automatic ball, drive the ball and equipment to observe the operation of the rubber ball. It mainly consists of shell, cover, close the ball bucket, switching valve, inlet pipe and outlet pipe and a check valve. On the cover inserts plexiglass viewing window in the lower part of the housing is equipped with drainage ports. Ball tee is designed with sufficient capacity to ensure the rubber ball in the tee ball has room to maneuver. Which received the ball bucket, switching valves, check valves are made of 304 stainless steel. Because the tee is designed with a unique check valve device, thus eliminating the original electric doors, not only simplifies the rubber ball cleaning system and run operation, and easy to achieve automatic control, improve the reliability of operation.
2. Rubber Ball Collecting Device
Rubber ball collecting device is the key to the ball during the cleaning of equipment. To maintain continuous rubber ball on the condenser cleaning, must be fed a steady stream of rubber ball cleaning system, and then cleaned cooling timely recovery of rubber ball for cleaning purposes again. Close ball control is used to disperse the rubber ball in the cooling water of all collected for reuse, so close the ball ball rate is very important. Ball's net income of 304 stainless steel plates, corrosion resistance, impact resistance, aging resistance.
3. Rubber Ball Pump

Vertical rubber ball Serve pump with direct-connect structure, with concentricity, small size, high efficiency, suction force, convenient disassembly, pressure level of 16 kg and other strengths, condenser cleaning device of choice for online products.

Rubber ball Serve cylindrical vane pump, channel-type impeller structure. Rubber ball in the pump chamber can pass freely, without blocking the ball, do not damage the ball. Rubber ball can be repeatedly delivered to the host via a pump brass rubber ball in the dirt to be washed, ball rate of 100%. Solve the old equipment to collect the ball by traction problems.
4. Rubber ball
Rubber ball generally used as the standard type of peeling rubber ball, ordinary rubber ball, rubber ball diamond.
