◆Summary

The Company has chosen to use very sophisticated domestic and foreign hydraulic or pneumatic diaphragm valves, valve controllers supporting JMA and more multi-valve assembly forming automatic water softener, it overcomes the shortcomings of multi-valve, since the market for several years, has a water softener equipment replacements.

◆Working Principle

Water hardness is mainly calcium (Ca2), magnesium (Mg2) ions formed. When the raw water containing hardness ions within the resin layer through the softener, the water of the calcium (Ca2), magnesium (Mg2) ion exchange resin adsorption was also the quality of the release of other objects of sodium (Na2) ions. Outflow from the water softener in the water is softened to remove hardness ions.
When the resin to absorb a certain amount of calcium (Ca2), magnesium (Mg2) ions, you must be regenerated. Regeneration of salt is salt water rinse tank in the resin layer, the hardness ions on the resin and then replace it, with the regeneration of waste water discharge tank, the resin to soften and restore the exchange capacity.

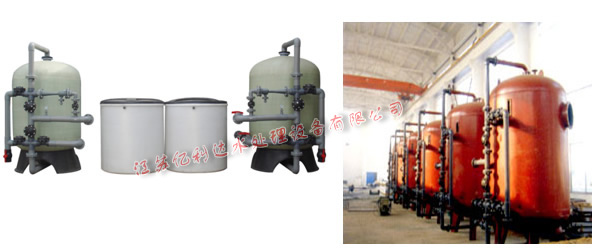

Multi-valve automatic water softener system consists of multiple control diaphragm (hydraulic and pneumatic), multi-valve controller, the resin tank, salt containers. Control procedures were based on pre-set diaphragm to control the various hydraulic issued a directive to complete the breaking of each pathway to achieve the regeneration of all running processes.

◆ Scope of Application

Widely used in various industrial and commercial demineralized water preparation, such as boiler feed water, recycled water to add water, add water, heating and air conditioning systems and various industrial process water. Processing hundreds of tons of water to thousands of tons.

◆ Feature
1, The valve used to perform operations at home and abroad have used very sophisticated hydraulic or pneumatic diaphragm valves, can be equipped with Ø600-Ø3000 tank. Body material reinforced plastics, corrosion resistance, long service life. Life of 30 years body, diaphragm service life more than eight years.
2, Performs the operation of the valve easy to install, easy to maintain, non-professionals to complete the inspection, maintenance, replacement and other operations.
3, JMA multi-valve controller to set the process any time and easy operation.
4, A power outage only to manually rotate the distributor to complete the procedural steps, easy to operate.
5, The regeneration method can be selected according to user requirements upstream or downstream.

◆ Equipment Selection Table

serial number	part number	freshwater yield	control mode	with controller	marks
1	JMT－750	8.0－10	Single tank time control	JMA×1	Specific parameters and see that technology parameter table1
2	JMT－900	15－20
3	JMT－1200	20－25
4	JMT－1500	30－40
5	JMT－1800	50－60
6	JMT－2000	60－70
7	JMQ－750	8.0－10	Single tank flow control	JMB+JMA×1	Specific parameters and see that technology parameter table1
8	JMQ－900	15－20
9	JMQ－1200	20－25
10	JMQ－1500	30－40
11	JMQ－1800	50－60
12	JMQ－2000	60－70
13	JMD2－750	8－10	Dual tank、single flowmeter、one with a prepared	JMB+JMA×2	Specific parameters and see that technology parameter table2
14	JMD2－900	15－20
15	JMD2－1200	20－25
16	JMD2－1500	35－40
17	JMD2－1800	50－60
18	JMD2－2000	60－70
19	JMC2－750	16－20	Double cans of single flowmeter working at the same time take turns regeneration	JMB+JMA×2	Specific parameters and see that technology parameter table3
20	JMC2－900	30－40
21	JMC2－1200	40－50
22	JMC2－1500	70－80
23	JMC2－1800	100－120
24	JMC2－2000	120－140
25	JME2－750	16－20	Double cans of double flowmeter working at the same time take turns regeneration	JMC+JMA×2	Specific parameters and see that technology parameter table3
26	JME2－900	30－40
27	JME2－1200	40－50
28	JME2－1500	70－80
29	JME2－1800	100－120
30	JME2－2000	120－140
31	JMD3－900	30－40	Three cans of、single flowmeter、with a for two	JMB+JMA×3	Specific parameters and see that technology parameter table4
32	JMD3－1200	40－50
33	JMD3－1500	70－80
34	JMD3－1800	100－120
35	JMD3－2000	120－140
36	JMD3－2500	200－250
37	JMD3－3000	280－350
38	JMC3－900	46－60	Three cans of, single flowmeter, working at the same time take turns regeneration	JMB+JMA×3	Specific parameters and see that technology parameter table5
39	JMC3－1200	60－75
40	JMC3－1500	100－120
41	JMC3－1800	150－180
42	JMC3－2000	180－210
43	JMC3－2500	300－350
44	JMC3－3000	420－490
45	JME3－900	45－60	Three cans of three flowmeter working at the same time take turns regeneration	JMC+JMA×3	Specific parameters and see that technology parameter table5
46	JME3－1200	60－75
47	JME3－1500	100－120
48	JME3－1800	150－180
49	JME3－2000	180－210
50	JME3－2500	300－350
51	JME3－3000	420－490
52	JMD4－900	45－60	Four cans of single flowmeter with a for three	JMB+JMA×4	Specific parameters and see that technology parameter table6
53	JMD4－1200	60－75
54	JMD4－1500	100－120
55	JMD4－1800	150－180
56	JMD4－2000	180－210
57	JMD4－2500	300－350
58	JMD4－3000	420－490
59	JMC4－900	60－80	Four cans of single flowmeter working at the same time take turns regeneration	JMB+JMA×4	Specific parameters and see that technology parameter table7
60	JMC4－1200	80－100
61	JMC4－1500	120－160
62	JMC4－1800	200－240
63	JMC4－2000	240－280
64	JMC4－2500	400－460
65	JMC4－3000	560－700

NOTE

1, Equipment selection is not limited to the above specifications, multi-valve tank can be more flexible automatic tank combinations (such as the five cans), the company can provide information on the raw water analysis and water requirements for special design.
2, Selection of equipment to determine: (1) upstream or downstream recycling renewable; (2) flow control or time control.
